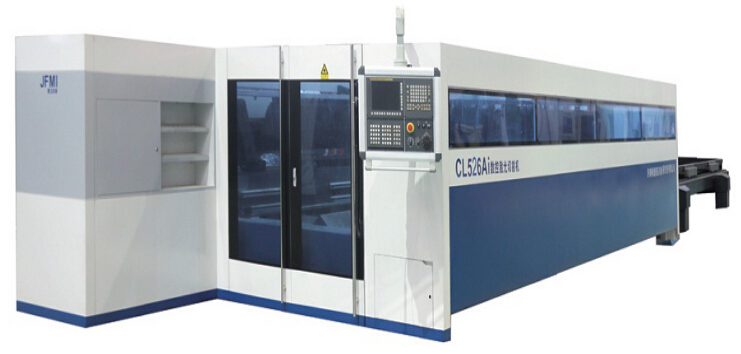

CL Series CNC CO2 Laser Cutting Machine

CL Series CNC CO2 Laser Cutting Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1956-10-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  48M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  CL Series
  • Weight: 10000.000 kg


Features of the CNC CO2 Laser Cutting Machine

1. The CO 2 Laser cutter uses a laser generator and numerical control system from FANUC in Japan.

2. A floor type gantry structure, as well as a double sided driving system, gives this full automatic laser cutting tool stable and accurate cutting quality.

3. With multiple functions, the CO 2 laser cutting equipment has a wide range of automatic operations.

Item/Model
CL513i
CL524i
CL526i
Max. Cutting Range
mm 3000x1500 4000x2000 6000x2000
X-axis Stroke
mm 3030 4030 6030
Y-axis Stroke
mm 1520 2020 2020
Z-axis Stroke
mm 120 120 120
W-axis Stroke
mm 14 14 14
X、Y axes Positioning Accuracy
mm ±0.025
±0.025
±0.025
X、Y axes Repositioning Accuracy
mm 0.015
0.015
0.015
X、Y axes Rapid Traverse
m/min
145
145
145
X、Y axes Max. Cutting Rate
m/min
20 20 20
Special CNC System for Laser

Standard configuration: FANUC 31i LB / or others
Standard configuration: FANUC 31i LB / or others
Standard configuration: FANUC 31i LB / or others
Laser Generator

Standard configuration: FANUC C series(2kW, 4kW, 6kW) / or others
Standard configuration: FANUC C series(2kW, 4kW, 6kW) / or others

Standard configuration: FANUC C series(2kW, 4kW, 6kW) / or others

Max. Loading Capacity
kg 1000 1600 2400
Outline Dimensions
mm 9800×3200x2100
13000×3700x2100
16000×3700x2100
Main Machine Weight
kg 10000 12500 16300

  • Size:  48M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  CL Series
  • Weight: 10000.000 kg
