Product Details
- Size: 17M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: JZ Series
- Weight: 8000.000 kg

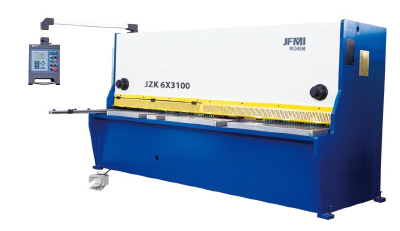

Designed with high production efficiency, the CNC hydraulic guillotine shearing machien automatically adjusts shearing angles and shearing clearance.
The metal sheet processing tool shears with high quality, giving smooth edges and minimal burrs.
| I tem/ Model | Unit | JZK6×3100 | JZS6×3100/2500 |
| Max.Shearing Sheet Thickness | mm | 6 | 6 |
| Max.Shearing Sheet Width | mm | 3100 | 3100 |
| Shearing Angle | 0°30' ~ 2° | 0°30' ~ 2° | |
| CNC Front Feeding | — | yes(Stroke:2500mm) | |
| CNC Back Gauge | yes (Stroke:1000mm) | — | |
| Weight | kg | 8000 | 9000 |
| Outline Dimensions | mm | 3850×1300×1750 | 4320×4810×1750 |
