- Size: 70M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: STPK /SPKA /SPTB/SPPU Series
- Weight: 60000.000 kg

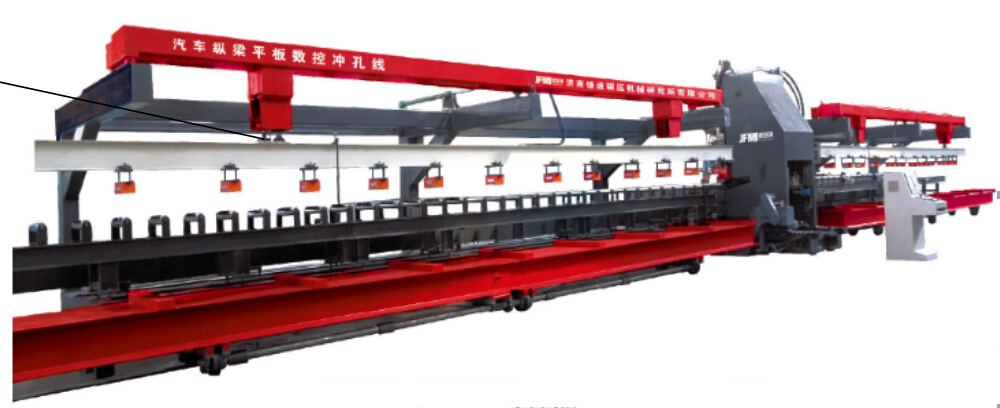

The CNC Punching Line for Truck Beam automatically feeds, punches, and unloads material and can be used to produce large automatic batches of auto beams.
Technical Parameters of CNC Punching Line for Truck Beam
Item/Model Unit Plate Beam Plate Beam Plate Beam Plate/Web of U beam STPK Seires(10 Clamps ) SPKA Seires(2 Clamps ) SPTB Seires SPPU Seires Nominal Force kN 1200 1200 1700 1200 Thickness mm 4-10 4-10 4-10 4-10 Max. Beam Size Beam Length mm 4000-12000 4000-12000 4000-1200 0 4000-12000 Outside Width mm 600 600 600 600/360 Flange Height mm —— —— —— 100 Max. Tool Size mm ф60 ф60 ф60 ф60 Number of Tools set 25 25 22 25 Max. Workpiece Weight kg 600 600 600 600
- Size: 70M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: STPK /SPKA /SPTB/SPPU Series
- Weight: 60000.000 kg
