- Size: 50M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: TPH Series
- Weight: 50000.000 kg

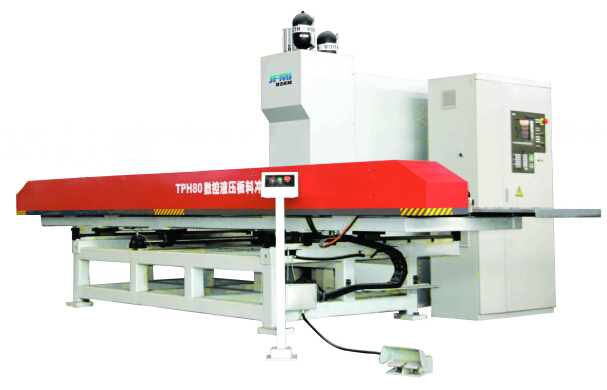

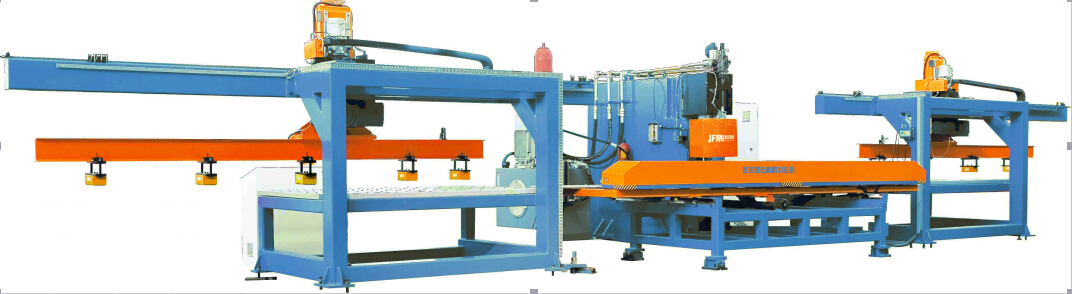

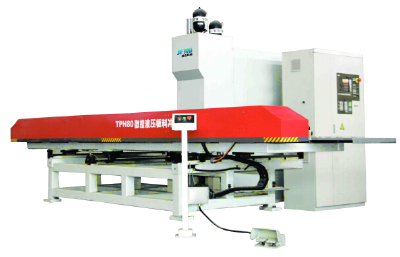

Developed for punching holes on connection plates, beams and other sheet material needed to make the frames of automobiles, the CNC punching press can process medium and thick sheet plates. To improve the production capacity, an optional automatic loading and unloading system can be added to thic CNC punch press.
Technical Parameters of the Automatic CNC Punching Equipment
Item/Model Unit TPH80 TPH100 TPH120 Nominal Force kN 800 1000 1200 Thickness mm 4-10 4-10 4-10 Number of Stations 9 9 12 Max. Tool Size mm ф40 ф 50 ф 50 X-axis Stroke mm 2500/3500 2500/3500 2500/3500 Y -axis Stroke mm 800 800 800 Quantity of Clamps pcs 3 3 3
