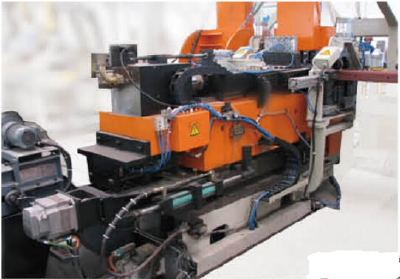

CNC Punching Line for Flanges of U Beam

CNC Punching Line for Flanges of U Beam

  • Min.Order Quantity: 1 Set
  • Supply Ability: 2 Sets per Quarter
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1956-10-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  150M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  HPU Series
  • Weight: 70000.000 kg





Features of the CNC Punching Line for Flanges of U Beam

1.Supporting automatic batch production, the CNC punchign line punches holes on flanges of U beam.

2. This CNC punchign equipment automatically feeds, positions, punches, and unloads material.

3. The front punching unit can be adjusted freely to adapt to the width of the U beam.

4. Thanks to the detection device for the automatic machine, any deviation of the beam shape will be detected and compensated.


Technical parameters of the CNC punching line for flanges of U beam

Item/Model
Unit HPU45-36 HPU65-36
Nominal Force
kN450/450650/650
Thickness
mm4-104-10
Max. Beam SizeBeam Lengthmm4000-120004000-12000

Outside Widthmm360360

Flange Heightmm100100
Max. Tool Size
mmф21
ф23
Number of Tools
set6/66/6
Max. Workpiece Weight
kg600600
Quantity of Clamps
pcs22



  • Size:  150M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  HPU Series
  • Weight: 70000.000 kg
