- Size: 150M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: SPU Series
- Weight: 70000.000 kg

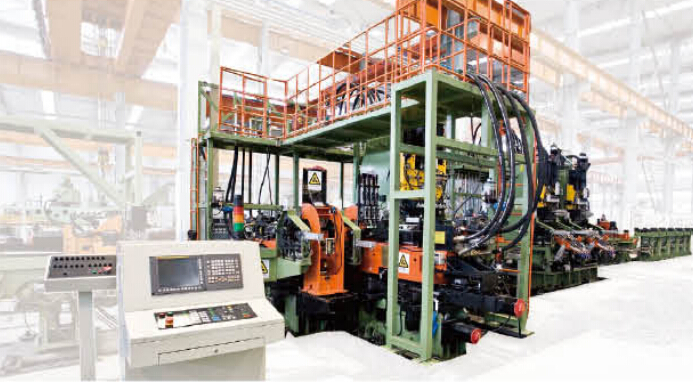

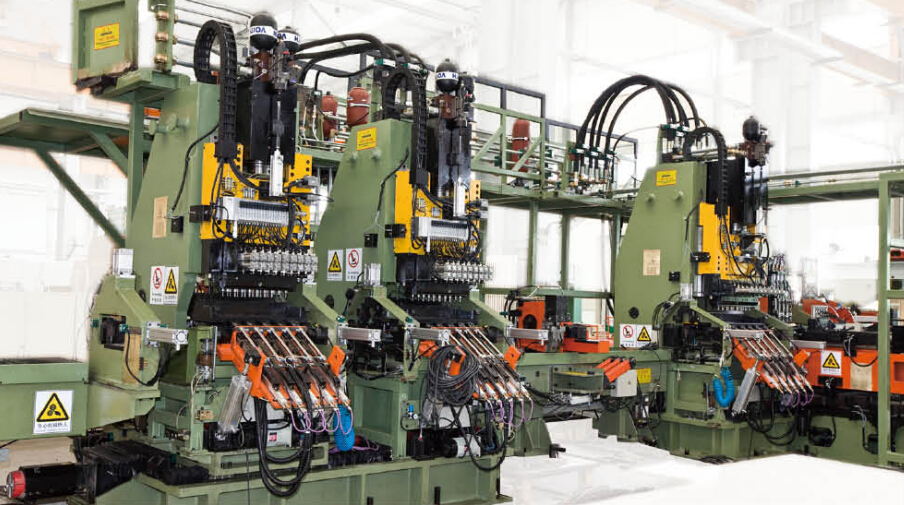

Our newly developed CNC punching line for web and flanges of U beam is specially designed for batch production. This CNC U beam punching equipment is capable of automatically feeding, positioning, punching, and unloading material.
Thanks to a front and rear detection unit, the CNC punching line detects and corrects any deviation from the beam shape and is highly accurate. On the beam, the CNC punching lines can use different flanges as a reference to punch different holes.
Technical Parameters of the CNC Punching Line
Model Number of PUnching Units Nominal Force Thickness Beam SIze Beam SIze Beam SIze Max. Tool Size Number of Tools Max. Workpiece Weight Quantity of Clamps Beam Length OUtside Width Flange Height pcs kN mm mm mm mm mm set kg pcs SPU16-36-3 3 1600/600/600 4-10 4000-12000 360 100 ф50 25/6/6 600 2 SPU12-36-4 4 600/1200/450/450 4-10 5000-12000 360 100 ф50 18/21/6/6 600 3 SPU16-36-4 4 800/1600/600/600 4-10 5000-12000 360 100 ф50 18/21/6/6 600 3 SPU12-36-5 5 600/600/1200/600/600 4-10 5000-12000 360 100 ф50 18/18/8/6/6 600 3 SPU16-36-5 5 800/800/1600/600/600 4-10 5000-12000 360 100 ф50 18/18/8/6/6 600 3
