CNC Punching Line for Web of U Beam

CNC Punching Line for Web of U Beam

  • Min.Order Quantity: 1 Set
  • Supply Ability: 2 Sets per Quarter
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1956-10-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  150M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  SPU Series
  • Weight: 70000.000 kg

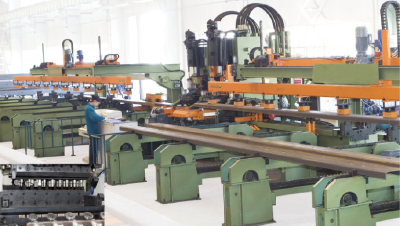

Features of the CNC Punching Line for Web of U Beam

1. The CNC punchign line is used to make large batches of web of U beams.

2. This CNC punching equipment automatically loads, positions, punches and unloads material.

3. The auto U beam punching line can be equipped with one or two sets of punching units. The small punching unit for the CNC punching line can punch holes in an X and Y axis direction, working together with the other punching unit for high working efficiency.

4. With a front and rear inspection device, the deviation of the beam shape can be exactly detected and compensated.

5. Different flanges can be used as the positioning reference for processing different holes on beam.


Technical parameters of the CNC punching line for web of U beam

Item/Model
UnitSingle Punch Unit Single Punch Unit
Single Punch Unit
Double Punch Units Double Punch Unit s
Double Punch Units



SPU04-21 SPU08-28 SPU12-36 SPU12-36-2 SPU16-36-2 SPU20-36-2
Nominal Force

kN 450 800 1200 600/1200 800/1600 1000/2000
Thickness
mm 4-6 4-8 4-10 4-10 4-10 4-10
Max. Sheet Size Beam Length
mm 4000-7000 4000-8000 4000-12000 5000-12000 5000-12000 5000-12000

Outside Width
mm 210 280 360 360 360 360

Flange Height mm 80 80 100 100 100 100
Max. Tool Size of CNC Punch Line
mm ф40
ф40
ф50
ф23/ф50
ф23/ ф6 0
ф23/ ф6 0
Number of Tools
set 16/20 21 25 18/21 18/21 18/18
Max. Workpiece Weight
kg 200 500 600 600 600 600
Quantity of Clamps
pcs 2 2 2 2 2 2
【Optional: Small Punch Unit Fixed or Moving in X-axis Direction】



  • Size:  150M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  SPU Series
  • Weight: 70000.000 kg
