Product Details
- Size: 17M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: JB Seires
- Weight: 7000.000 kg

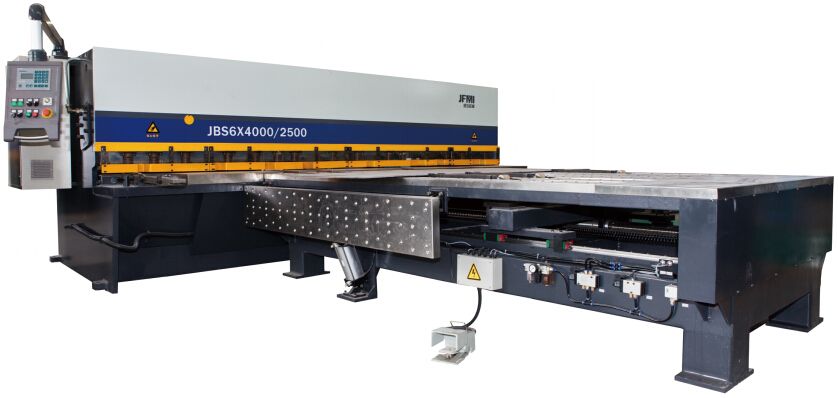

Features of the CNC Shearing Machine (Hydraulic Swing Type )
1. Convenient and reliable, the CNC Shearing Machine (Hydraulic Swing Type ) is atable and easy to operate.
2. The Shearing clearance of the CNC cutting machinery can be adjusted manually.
3. Because of our low production costs, our hydraulic seing beam shearer is offered at an a ffordable and competitive price.
| Item/Model | Unit | JBK6×3200 | JBS6×3200/2500 |
| Max.Shearing Sheet T hickness | mm | 6 | 6 |
| Max.Shearing Sheet Width | mm | 3200 | 3200 |
| Shearing Angle | 1°30' | 1°30' | |
| CNC Front Feeding | — | yes(Stroke:2500mm) | |
| CNC Back Gauge | yes (Stroke:600mm) | — | |
| Weight | kg | 7000 | 9000 |
| Outline Dimensions | mm | 3670×1675×1620 | 3900×4810×1620 |
- Size: 17M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: JB Seires
- Weight: 7000.000 kg
