- Size: 250M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: JCL Series
- Weight: 70000.000 kg

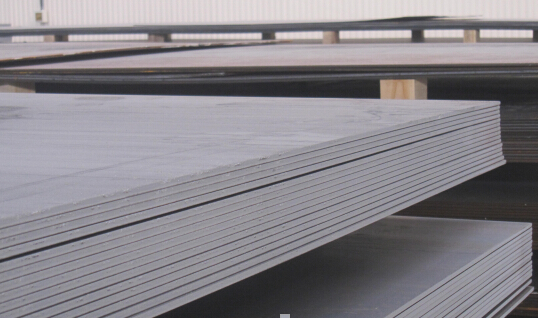

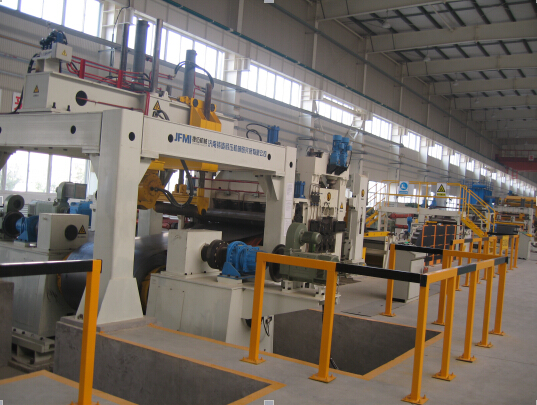

The cut-to-length line for hot rolled steel is generally used to process carbon steel, stainless steel, high-strength steel, and pickling plates.
Features of the Cut-to-L ength Line
1. The hot rolled steel cutting machine has a rapid uncoiling speed and high working efficiency.
2. The high automation of the sheet metal processing equipment is simple and reliable to operate.
3. The automatic cut-to-length lien automatically stacks and has high cutting accuracy.
Technical parameters of the cut-to-length line for hot rolled steel
Item/Model Unit JCL-6x1850 JCL-12x1850 JCL-16x1850 JCL-20x2150 Thickness mm 1-6 3-12 4-16 5-20 Width mm 700-1850 700-1850 700-1850 900-2150 Max. Feeding Speed m/min 40 40 20-40 20-40 Stacking Weight t 8 8 8 10 Coil Weight t 25 35 35 35
