- Size: 50M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: FL Series
- Weight: 1000.000 kg

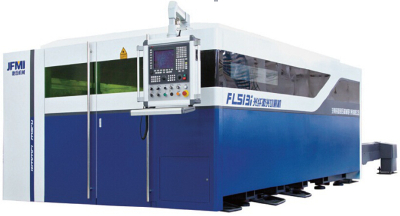

Features of the CNC Fiber Laser Cutting Machine
1. Based on 30 years of experience, our CNC fiber laser cutting machine incorporates optical fiber technology to efficiently process medium and thin sheet material.
2. The CNC fiber laser cutting machine makes use of only single fiber for laser transmission, without the demand for extra support and external optic path. This helps save the time and cost for adjustment and mainternance on multiple optical instrument.
3. Applicable for automatically processing various kinds of sheet material, the laser metal cutting equipment prevents fiber optic damage caused by the reflection of laser.
I tem/Model FL513i FL524i FL526i Max. Cutting Range mm 3000×1500 4000×2000 6000×2000 X-axis Stroke mm 3030 4030 6030 Y-axis Stroke mm 1520 2020 2020 Z-axis Stroke mm 120 120 120 X、Y axes Positioning Accuracy mm ±0.025 ±0.025 ±0.025 X、Y axes Repositioning Accuracy mm 0.015 0.015 0.015 X、Y axes Rapid Traverse m/min 145 145 145 X、Y axes Max. Cutting Rate m/min 50 50 50 Laser Generator kW 1-4 1-4 1-4 Max. Loading Capacity kg 1000 1600 2400 Outline Dimensions mm 9000×3050x2100 12000x3600x2100 15200x3600x2100 Main Machine Weight kg 9000 11500 15300
- Size: 50M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: FL Series
- Weight: 1000.000 kg
