- Size: 170M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: RS Series
- Weight: 47000.000 kg

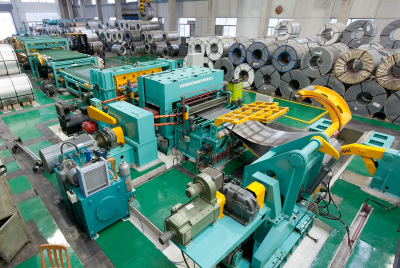

The flying shear line continuously feeds and shears material according to a pre-set feeding speed and shearing length, increasing the production capacity.
Features of the flying shear line
1. The high speed flying shear line uses multi-roller leveler for a smooth processign effect with better flatness.
2. Driven by a servo motor, the flying shear line enables high shearing accuracy.
3. Thanks to a double stacking station, the production capacity of this material cutting equipment is high.
Technical parameters of the flying shear line
Item/Model Unit RS-2x800 RS-2x1300 RS-3x1600 RS-3x1850 Thickness mm 0.3-2 0.3-2 0.4-3 0.5-3 Width mm 150-800 200-1300 400-1600 400-1850 Line Speed m/min 60 60 60 60 Max. Cutting Frequency times/min 120 120 120 120 Stacking Weight t 3 5 5 5 Coil Weight t 8 12 15 20
