Product Details
- Size: 25M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: SKYB Seires
- Weight: 15000.000 kg

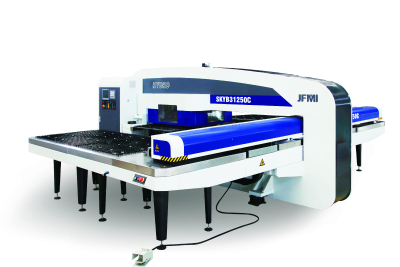

Scientifically designed, the hydraulic driven CNC turret punch press of SKYB series uses a hydraulic drive system imported from Germany H L Company.
The Full automatic punching machine is producted with technology proven to make reliable and safe CNC punching equipment.
| Item | SKYB31225C | SKYB31240C | SKYB31250C | SKYB31550C | SKYB51250C | SKYB51550C | |
| No minal Force | kN | 300 | 300 | 300 | 300 | 500 | 500 |
| Max. Sheet Thickness | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Max. Tool Size | mm | ф88.9 | ф88.9 | ф88.9 | ф88.9 | ф88.9 | ф88.9 |
| Max. Sheet Size(Once Reposition) | mm | 1250×2500 | 1250×4000 | 1250×5000 | 1500x5000 | 1250x5000 | 1500x5000 |
| Punching Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Max. Hit Rate | h.p.m | 600/900 | 600/900 | 600/900 | 600/900 | 300 | 300 |
| Number of Stations | set | 32 | 32 | 32 | 32 | 32 | 32 |
| Number of Index | set | 2 | 2 | 2 | 2 | 2 | 2 |
| No. of Controlling Axes | pcs | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) |
| Machine Weight | kg | 14000 | 15000 | 16000 | 17000 | 21000 | 22000 |
| Outline Dimensions | mm | 4965x2800x2100 | 4965×4400×2110 | 4965×5200×2110 | 5210×5200×2110 | 4965×5200×2110 | 5210×5200×2340 |
