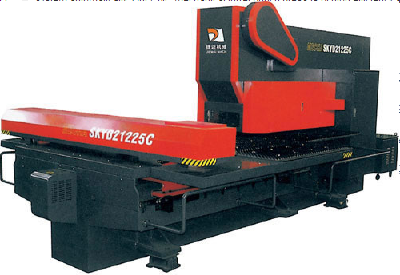

Features of the Mechanical Driven CNC Turret Punch Press
1. The SKYD mechanical driven CNC turret punch press uses a belt pulley to drive the flywheel. Through an eccentric shaft, connecting rod, sliding block, and clutch, the punch is powered for hseet stamping.
2. A simply designed structure makes the sheet metal punching machine highly stable and reliable.
3. Thanks to our low production costs, our mechanical driven CNC turret punch press costs 15% less than similar SKYB series CNC turret punch press.
4. With over 30 years of experience in the industry, we manufacture our CNC punching equipment using proven technology and reliable precesses.
Item Unit SKYD21225C Nominal Force kN 250 Max. Sheet Thickness mm 6.35 Max. Tool Size mm ф88.9 Max. Sheet Size(Once Reposition) mm 1250×2500 Punching A c curacy mm ±0.1 Max. Hit Rate h.p.m 360 Ram Stroke mm 30 Number of Tool Stations 20 No. of Controlling Axes pcs 4(X,Y,T,C) Machine Weight kg 11000 Outline Dimensions mm 4800×2600×2000
