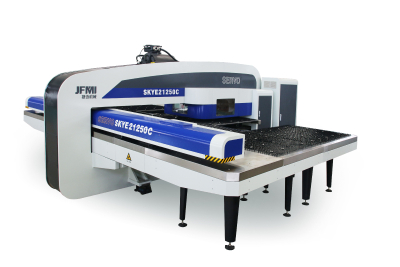

Features of the Servo Driven CNC Turret Punch Press
1. Our SKYE servo driven CNC turret punch press uses a servo motor from Estun.
2. Being temperature-resistant, the sheet metal punching machine won't be affected by temperature changes.
3. This numerical control turret punching equipment works particultarty well for stretch forming.
4. With a highly efficient servo motor, this CNC turret punch press makes little noise and saves energy when in operation.
5. The servo motor of the high-efficiency punch press allows operators to easily adjust the stop position of the sliding block.
| Item/Model | SKYE21225C | SKYE21250C | SKYE21550C | ||
| Norminal Force | KN | 250 | 250 | 250 | |
| Max. Sheet Thickness | mm | 6.35 | 6.35 | 6.35 | |
| Max. Tool Size | mm | ф88.9 | ф88.9 | ф88.9 | |
| Max. Sheet Size(Once Reposition) | mm | 1250×2500 | 1250×50 00 | 1500x5000 | |
| Punching Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | |
| Max. Hit Rate | h.p.m | 1200 | 1200 | 1200 | |
| Max. Punching Rate (6mm Stroke) | 1mm Pitch | h.p.m | 500 | 500 | 500 |
| Max. Punching Rate (6mm Stroke) | 25mm Pitch | h.p.m | 300 | 300 | 300 |
| Max. Feed Rate | m/min | 110 | 110 | 110 | |
| No. of Stations (Including 2 index tool) | set | 32 | 32 | 32 | |
| No. of Controlling Axes | pcs | 5（X、Y、T、C、A） | 5（X、Y、T、C、A） | 5（X、Y、T、C、A） | |
| Machine Weight | kg | 14000 | 16000 | 17000 | |
| Outline Dimensions | mm | 4965×2800×2210 | 4965×5200×2210 | 5210×5200×2210 |
