- Size: 25M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: SP Seires
- Weight: 16000.000 kg

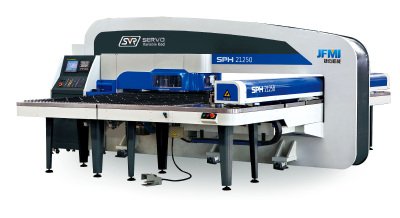

The power system of the servo driven CNC turret punch press in the SP series uses the highly reliable FANUC servo motors imported from Japan. This energy-saving punch press is made using our patented technology for inventing our servo motor driven, main driven with variable connecting rods, several interchangeable molds indexing mechanisim, and multi-tool station. Our metal plate processing machines are distinguished for their energy conservation, high efficiency, and low noise.
Item/Model SPH21250 SPE21250 Nominal Force kN 250 250 Max. Sheet Thickness mm 6.35 6.35 Max. Tool Size mm ф88.9 ф88.9 Max.Sheet Size(Once Reposition) mm 1250×5000 1250×5000 Punching Accuracy mm ± 0.1 ± 0.1 Press Drive System Drive Type Servo V.R. Servo V.R. AC Motor Power kW 16 16 Max. Sheet Weight kg 150 150 Max. Marking Rate h.p.m 1800 1800 Max. Punching Rate (10mm Stroke) 1mm Pitch h.p.m 1000 1000 25mm Pitch h.p.m 500 500 Max. Feed Rate m/min 110 110 No. of Stations (IT) 40(4) / 50(2IT/2MT) 32(2) IT Station Exch. Tooling Type C/D/MT6A/E —— (Quantity of Twice Index Subtoolings) 12 —— No. of Controlling Axes pcs 6+1(X/Y1/Y2/T/C/C1/A) 5(X, Y, T, C, A) Machine Weight kg 16000 16000 Outline Dimensions mm 4965×5200×2110 4965×5200×2110
