- Size: 60M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: JL Seires
- Weight: 15000.000 kg

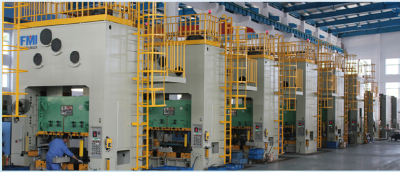

The straight side single action press uses multiple cold pressing technologies and hot trimming technology for die forging, including punching, forming, bending, and stretching. Our automatic single action press is widely used in automobile, agricultural machinery, light textile machinery, hardware processing, household appliances, electrical machinery and aviation in dustries.
Technical parameters of the straight side single action press
Item/Model Unit JL36C-400 JL36C-400Q JL36C-400Y JC36C-400T JL36C-630 JL36C-630Q Nominal Force kN 4000 4000 4000 4000 6300 6300 Nominal Force Stroke mm 13 13 13 13 13 13 Strokes of Slide mm 400 400 500 400 500 500 Strokes Per Minute spm 16 14 14 10-20 14 12 Max. Die Height mm 900 900 1050 1000 1000 1000 Shut Height Adjustment mm 340 340 500 400 350 500 Size of Table(L-R x F-B) mm 2800x1600 3100x1500 3000x1700 2800x1600 3500x1600 3450x1700 Bottom Size of Slide(L-R x F-B) mm 2800x1600 3100x1500 3000x1700 2800x1600 3500x1600 3520x1500 Distance Between Gibs mm 2810 3110 2920 2820 3460 3320 Moving Table Type ——
——
Cushion Cushion Force kN 600 800 1200 600 800 1000 Number unit 1 1 1 1 1 1 Stroke mm 200 200 15-250 0-200 250 240 Outside Dimensions L-R mm 4300 5120 5080 5100 5650 5813 F-B mm 2600 3110 3890 3920 3200 3675 Height Above Floor mm 7000 7230 7640 7520 9000 7120 Air Pressure Mpa 0.55 0.55 0.55 0.55 0.55 0.55 Main Motor Power kW 55 45 55 55 75 75 Total Weight T 102 115 130 140 135 170
13
Item/Model Unit JL36C-630Y JL36C-630T JL36C-800 JL36C-800Q JL36C-800Y JL36C-800T Nominal Force kN 6300 6300 8000 8000 8000 8000 Nominal Force Stroke mm 13 13 13 13 13 Strokes of Slide mm 500 500 500 500 500 600 Strokes Per Minute spm 12-15 10-20 12 12 9-18 8-14 Max. Die Height mm 1300 1000 1000 990 850 1200 Shut Height Adjustment mm 700 400 500 500 250 600 Size of Table(L-R x F-B) mm 4000x1900 3300x1600 4000x1800 3450x1700 3500x1600 4000x2000 Bottom Size of Slide(L-R x F-B) mm 4000x1900 3300x1600 4000x1800 3520x1500 3500x1600 4000x2000 Distance Between Gibs mm 4020 3320 4030 3520 3580 4080 Moving Table Type
——
Cushion Cushion Force kN 1200 1000 1200 1000 —— 2000 Number unit 1 1 1 1 —— 1 Stroke mm 10-250 0-250 250 240 —— 20-300 Outside Dimensions L-R mm 6300 5660 6350 6200 6050 6540 F-B mm 5090 3925 3360 4170 5400 5400 Height Above Floor mm 8300 8150 8490 8680 8200 8900 Air Pressure Mpa 0.55 0.55 0.55 0.55 0.55 0.55 Main Motor Power kW 75 90 90 90 110 110 Total Weight T 230 225 190 210 250 275
Item/Model Unit JL36C-1000 JL36C-1000Q JL36C-1600Q Nomin al Force kN 10000 10000 16000 Nominal Force Stroke mm 13 13 13 Strokes of Slide mm 500 500 600 Strokes Per Minute spm 10-16 12 10 Max. Die Height mm 1000 1000 1000 Shut Height Adjustment mm 560 500 600 Size of Table(L-R x F-B) mm 4000x1800 3450x1700 5000x2000 Bottom Size of Slide(L-R x F-B) mm 4000x1800 3520x1500 5000x2000 Distance Between Gibs mm 4030 3280 5060 Moving Table Type ——
Cushion Cushion Force kN 1200 2200 3200 Number unit 1 1 1 Stroke mm 250 250 200 Outside Dimensions L-R mm 6800 5900 8440 F-B mm 3900 3800 5550 Height Above Floor mm 8100 8700 9960 Air Pressure Mpa 0.55 0.55 0.55 Main Motor Power kW 132 132 132 Total Weight T 240 240 468
