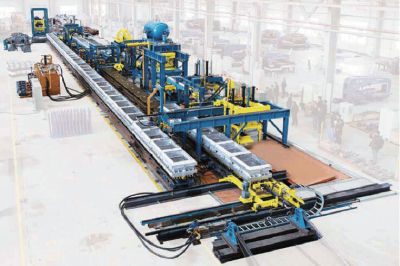

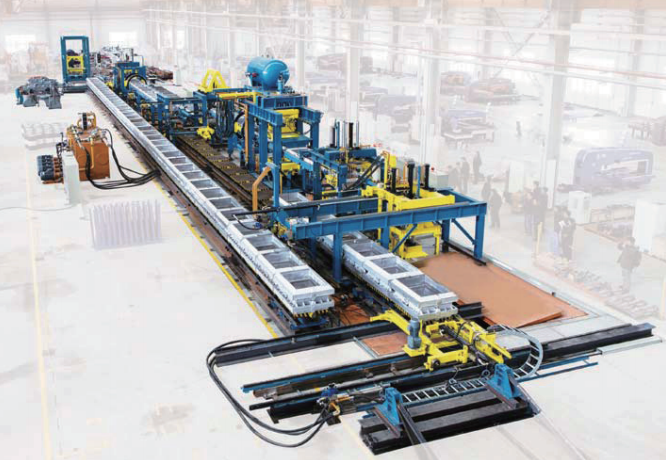

1. Automatic Air-Flow High-Pressure Squeeze Moulding Line
In 2000, we successfully developed the first automatic air-flow high-pressure squeeze molding line in China. Our foundry machinery includes setting to adjust the bespoke cooling time, core setting and pouring quantity.
Technical parameters of the automatic air-flow high-pressure squeeze molding line
Model Flask Size(mm ) Producticity(moulds/h ) XZ44 800x600-1850x1250 60-120
*Note:
1. The cooling time, core-setting stations, and pouring stations of the air-flow high-pressure squeeze molding line depends on the user's process requirements for specific workpieces.
2. Articulated master-slave manupulator is available with this squeeze molding machine.

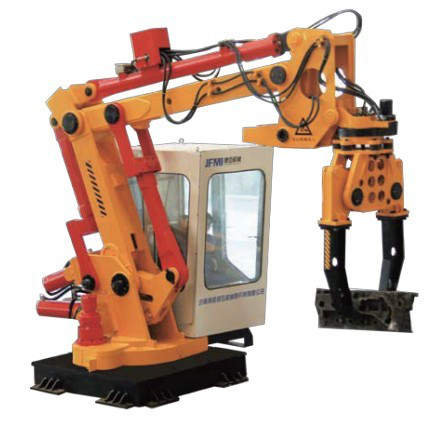

2. Master-S lave Controlling Articulated Manipulators
Item/Model Y815A Y8110 Grasp Capacity 500 kg 1000 kg Number of Freedom Degree 5~6 6 Working Radius 1700~5200 mm 2000~5600 mm Column Swivel Angle ±165 ° ±165° Max. Angular Speed of F orearm 20°/s 20°/s Max. Angular Speed of Upper Arm 30°/s 30°/s Max. Angular Speed of Horizontal Rotation 40°/s 40°/s Paw Opening 0 ~700 mm 0 ~12 00 mm Hydraulic System Working Pressure 13 MPa 13 MPa Total Power 28 kW 45 kW
3. Pouring Machine
Item/Model R9110 R9115 R9125 Ladle Effective Capacity 1000 kg 1500 kg 2500 kg Ladle Type Cylindrical Shaped / Fan Shaped Cylindrical Shaped / Fan Shaped Cylindrical Shaped / Fan Shaped A-axis Driving Mode(tilt) Hydraulic / Servo Hydraulic / Servo Hydraulic / Servo X-axis Driving Mode(parallel to the direction of molding line) Servo Servo Servo Y-axis Driving Mode(perpendicular to the direction of molding line) Hydraulic / Servo Hydraulic / Servo Hydraulic / Servo Max. Moving Speed of X-axis 800 mm/s 800 mm/s 800 mm/s Max. Moving Distance of Y-axis 350 mm 4 50 mm 5 50 mm Max. Mo ving Speed of Y-axis 60 / 100 mm/s 60 / 100 mm/s 60 / 100 mm/s Inoculant Hopper Capacity 45 kg 45 kg 45 kg Max. Feeding Speed of Inoculant 20 g/s 20 g/s 20 g/s Max. Pouring Speed 20 kg /s 20 kg/s 20 kg/s Height Between Iron Notch and Sprue Cup 290 mm 290 mm 290 mm Time of Automatic Ladle Changing 30 s 30 s 30 s Synchronous Pouring Accuracy ±10 mm ±10 mm ±10 mm Outline Dimensions(Length×width×height) 4650×1700×3200 mm 4750×1800×3200 mm 4850×1900×3200 mm
