- Size: 200M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: **
- Weight: 150000.000 kg

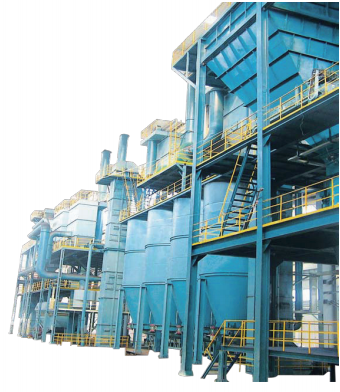

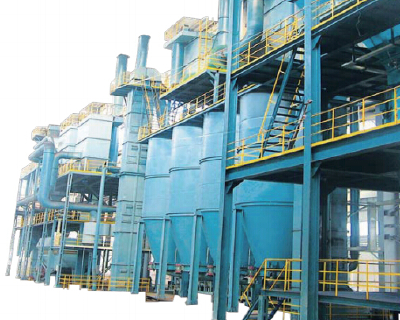

1. Sand Preparation Production Line
Item Index Productivity 40-160 t/h Cooling Temperature of Old Sand ≤42°C o r ≤ room temperature+10°C Green Compressive Strength ≥18 N/cm2 Wet Tensile Strength 1.2-1.5N/cm2 Air Permeability ＞100 Compactability 38%-42% Dust Emission Concentration ≤50 mg/Nm3 Sand Lump ≤3%

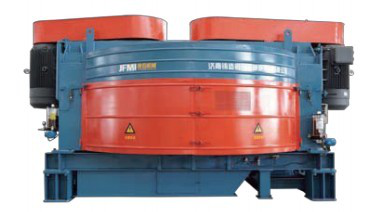

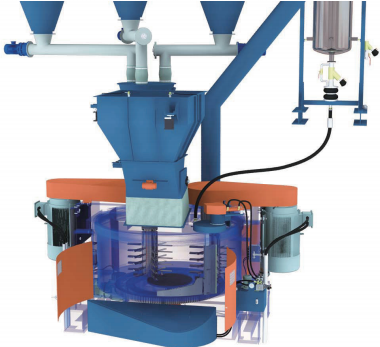

2. Series S18 Intensive Mixer
Item/Model S1822 S1825 S1829 Productivity 40〜60 t/h 6 0〜9 0 t/h 9 0〜12 0 t/h Feeding Amount for One Time 2000 kg 3 000 kg 5 000 kg Sand Mixer Disc Diameter Ф2200 mm Ф25 00 mm Ф29 00 mm Rotor Motor Power 2×90 kW 2x110-132 kW 2x132-160 kW Machine Basin Motor Power 18.5 kW 22 kW 30 kW Hydraulic Pump Motor Power 4 kW 4 kW 5.5 kW

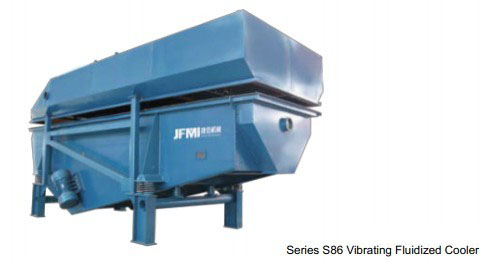

3. Series S86 Vibrating Fluidized Cooler
Item/Model S8614 S8618 S8623 Productivity 30〜50 t/h 5 0〜8 0 t/h 8 0〜12 0 t/h Table Size 1350×6000 mm 1800×7100 mm 2300×8000 mm Vibrating Motor Power 2×3.7 kW 2×5.5 kW 2×10 kW Max. Exciting Force 2×50 kN 2×80 kN 2×140 kN Machine Weight 9000 kg 13000 kg 18000 kg
