- Size: 200M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: **
- Weight: 150000.000 kg

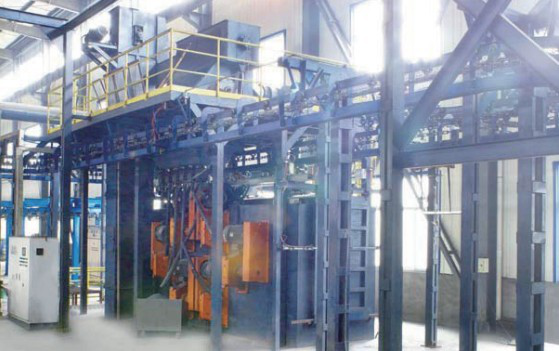

1. Shot Blasting Line for Cylinder Blocks and Heads
Model Crane Weight of Single Hook(kg) Workpiece Size(mm) Productivity(hook/h) QJF40 400 800x1000 50~60
2. Two-station Grinding Machine for Cylinder Blocks and Heads
Item/Model QM826 QM8210 Workpiece Size (Max.) 600x320 mm 1000x500 mm Productivity 60 pieces/h 48 pieces/h Single Cycle Time 55 s 70 s Number of Grinding Head 2 pieces 2 pieces Grin ding Wheel Diameter φ760 mm φ760 mm Inner Space of Grinding Wheel End Face(Max. ) Max. 600 mm Max. 10 00 mm Inner Space of Grinding Wheel End Face(Min. ) Min. 200 mm Min. 200 mm Grinding Head Power 2×30 kW 2×37 kW Total Power 84 kW 98 kW

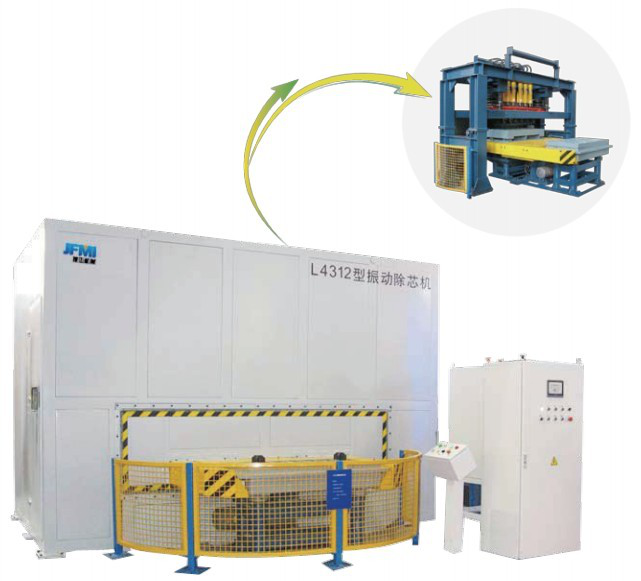

3. Vibratory Decoring Device
Item/Model L4312 Structure type Double Station Turret Max. size of casting 1200 mm Productivity ≥40 pieces/h（Six-cylinder） Productivity ≥60 pieces/h（Three-cylinder or Four-cylinder） Motor power 2.2 kW Compressed air consumption 3 m3/min(0.6 MPa)
- Size: 200M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: **
- Weight: 150000.000 kg
