- Size: 60M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: **
- Weight: 15000.000 kg

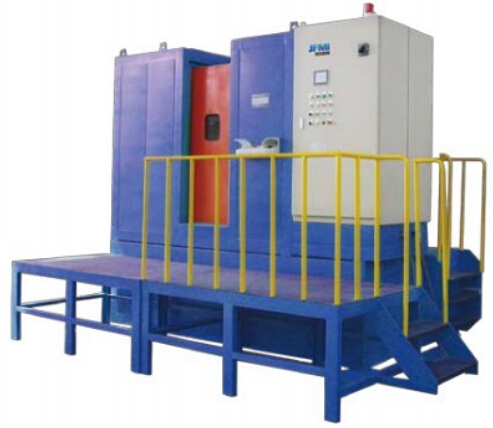

The vibrating shakeout machine for aluminum alloy castings integrates high-frequency impacking and vibrating technology to work efficiently and with low power consumption. Our industral vibrating shakeout equipment removes core sand inside aluminum alloy castings such as automobile engine cylinder covers, intake manifolds, etc.
Technical parameters of the vibrating shakeout machine
No. Item Unit Value Impact Frequency（0.4MPa） time/min ~1000 Vibrating Frequency Hz 15~24 Clamping Position (Lateral Clamping) The Level Spacing mm 580 Horizontal and Verticaldimensions mm 400 Vertical Effective Size mm 500 Max. Valid Weight of Castings (Including Core) kg 40 Total Power kW 16 Outline Dimensions (LxWxH) (Exclude operation platform) mm 4700x2240x326
- Size: 60M3
- Place of Origin: China
- Brand Name: JFMI
- Model Number: **
- Weight: 15000.000 kg
