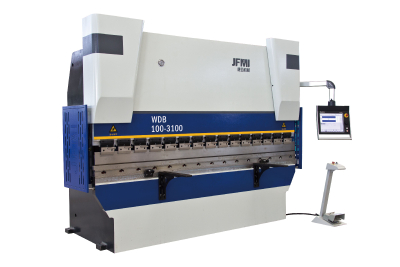

WDB Series CNC Electro-Hydraulic Servo Synchronized Press Brake

WDB Series CNC Electro-Hydraulic Servo Synchronized Press Brake

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 15 Set/Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1956-10-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  17M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  WDB Series
  • Weight: 9500.000 kg

Features of the CNC Electro-hydraulic Servo Synchronized Press Brake

1. The CNC Electro-hydraulic Servo Synchronized Press Brake uses an electro-hydraulic proportional servo valve for accurate synchronous control.

2. The professional hydraulic system for the CNC brake press is produced with established technology for high reliability.

3. Safety and quickly, the mold for the CNC bending machine can be clamped manually.

4. Our CNC Electro-hydraulic Servo Synchronized Press Brake has a VILA compensation function for fine adjustment and high accuracy.

5. To make reliable and high precision electro-hydraulic bending equipment, we use electronic components from well-known international companies.

6. Driven by a servo motor, the back gauge of the CNC Electro-hydraulic Servo Synchronized Press Brake has fast operating speed.

Item/Model

WDB100-3100
WDB160-3100
WDB225-3100
WDB250-3100
WDB100-4000
WDB160-4000
Nominal Force

kN 1000 1600 2250 2500 1000 1600
Bending Length

mm 3100 3100 3100 3100 4000 4000
Worktable Width

mm 74 94 94 94 74 94
Frame Distance

mm 2600 2600 2600 2600 3500 3500
Throat Depth

mm 400 400
400
400
400
400
Ram Stroke

mm 200 200
200
200
200
200
Max.Open height

mm 450 450
450
450
450
450
Ram Speed

mm/sec
10 10
10
10
10
10
Back Gauge
X-axis Stroke
mm 600 600
600
600
600
600
Back Gauge
Speed
mm/sec
250 250
250
250
250
250
Back Gauge
R-axis Stroke
mm 150 150
150
150
150
150
Main Motor Power

kW 7.5 11 15 15 7.5 11
Outline Dimensions
Length
mm 3715 3715 3715 3715 4615 4615

Width
mm 2525 2525 2525 2525 2525 2525

Height
mm 2600 2880 2880 2880 2700 2980
Machine Weight

kg 9500 12500 16000 16500 10000 13500

Item/Model

WDB225-4000
WDB250-4000
WDB300-5000
WDB400-5000
WDB400-6000
WDB500-6000
Nominal Force

kN 2250 2500 3000 4000 4000 5000
Bending Length

mm 4000 4000 5000 5000 6000 6000
Worktable Width

mm 94 94 300 300 300 300
Frame Distance

mm 3500 3500 4030 4030 5030 5030
Throat Depth

mm 400 400
400
400
400
450
Ram Stroke

mm 200 200
250
300
300
300
Max.Open height

mm 450 450
470
570
570
600
Ram Speed

mm/sec
10 9
9
8
8 8
Back Gauge
X-axis Stroke
mm 600 600
600
600
600
600
Back Gauge
Speed
mm/sec
250 250
250
250
250
250
Back Gauge
R-axis Stroke
mm 150 150
150
150
150
150
Main Motor Power

kW 15 15 22 37 37 45
Outline Dimensions
Length
mm 4615 4615 6000 6000 7000 7000

Width
mm 2525 2525 2700 3000 3100 3200

Height
mm 2980 2980 3900 5000 5230 5800
Machine Weight

kg 17500 18000 25000 37000 42000 55000



  • Size:  17M3
  • Place of Origin:  China
  • Brand Name:  JFMI
  • Model Number:  WDB Series
  • Weight: 9500.000 kg
